ONV H1064PLS 6 Port POE Switch
ONV H1064PLS 6 Port POE Switch

ONV H1064PLS 6 Port POE Switch

Original price was: 2,450.00৳ .Current price is: 2,200.00৳ .

Device: 4 + 2 Port POE Switch
Model- ONV- H1064PLS
Ports support 10/100Mbps auto- sensing.
Transmission distance is up to 250m.
Warranty: 01 Year

Categories: , Tags: , , , , , , , , , , , , Brand:

Description

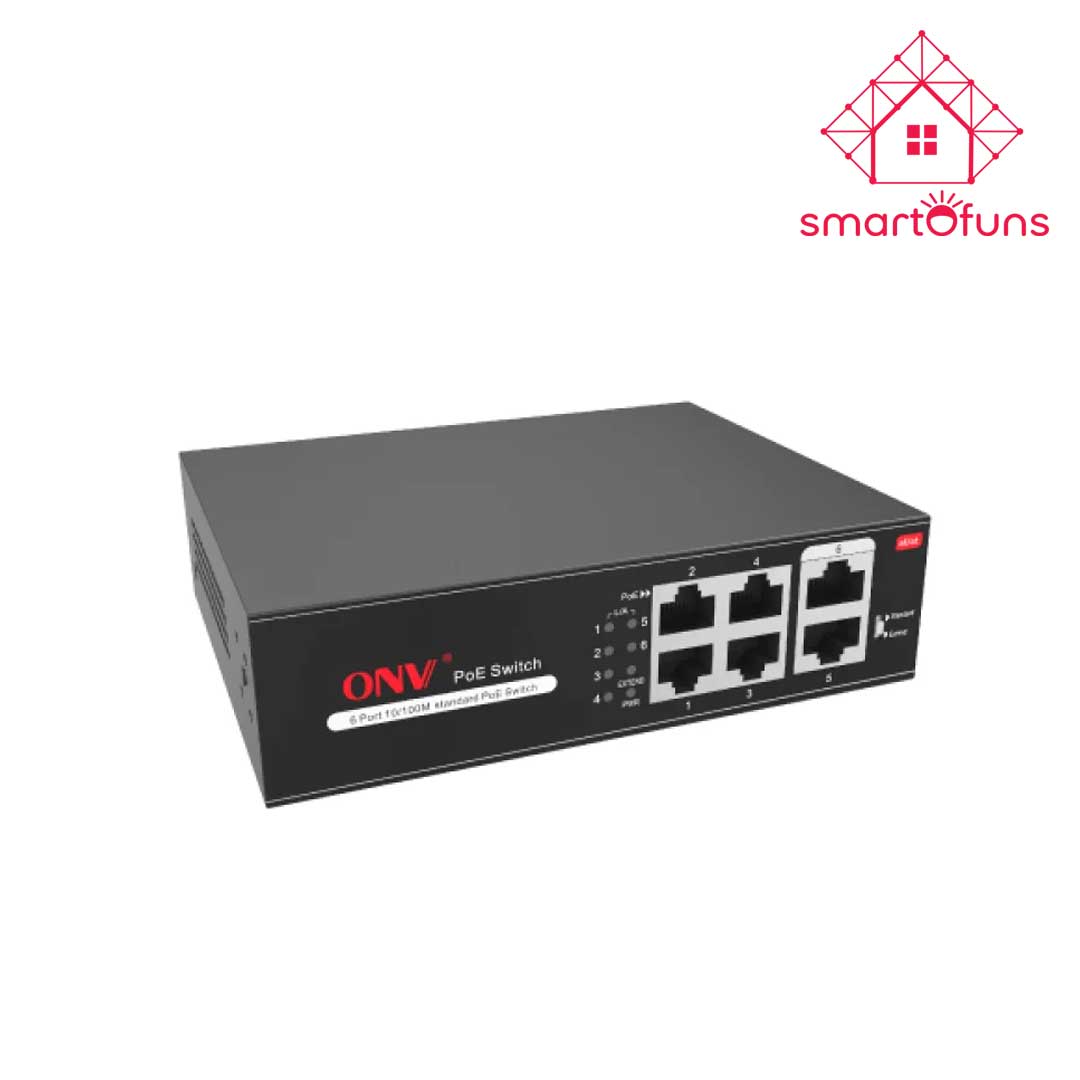

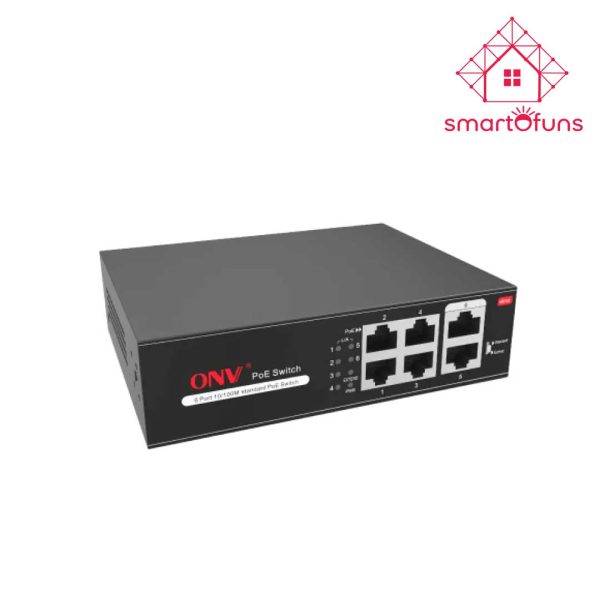

ONV H1064PLS 6 Port POE Switch – Best POE Network Switch in BD

The ONV H1064PLS is a 6-port Smart POE (Power over Ethernet) switch, specially designed for CCTV camera systems, IP camera networks, and small business IT setups. It features 4 POE ports for powering and connecting IP devices, such as IP cameras, wireless access points, and VOIP phones, along with 2 uplink ports for internet or NVR connection.
This switch is ideal for anyone who wants a clean, centralized power and data solution without using separate power adapters for each device. It’s widely used in home security systems, office networks, retail shops, schools, and SMEs looking for reliable and cost-effective networking.



Main Key Features of ONV H1064PLS 6 Port POE Switch:

  • 6 Port Design: 4 × 10/100Mbps POE Ports, 2 × 10/100Mbps Uplink Ports.
  • Total POE Power Budget: 30W – suitable for powering multiple POE devices like IP cameras, access points, and IP phones.
  • Extended Transmission Mode: Up to 250 meters for long-distance IP camera installations.
  • Plug and Play Setup: No configuration needed. Just connect and start powering your devices.
  • IEEE802.3af/at Compliant: Works with all standard POE-enabled devices.



Technical Specifications:

Interface Characteristics
Fixed Port 4*10/100Base-TX PoE ports (Data/ Power)
2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port Port 1-6/ 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Function Switch 100m: 100 meters transmission, 250m: 10M/250 meters transmission and VLAN mode.
Note: When the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission 10BASE-TX: Cat5 or later UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter’s
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 1.6Gbps (Non-blocking)
Forwarding Rate @64byte 0.98Mpps
MAC 1K
Buffer Memory 768K
Jumbo Frame 1536byte
LED Indicator Power: PWR (Green), Network: Link(Yellow)
PoE: PoE (Green), Functional switch:100m/ 250m (Green)
PoE & Power Supply
PoE Port Port 1-4
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, PoE+
Power Consumption Standby<3W, Full load<65W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 1.1A
Physical Parameter
Dimension (L*W*H) 142*115*40mm
Operation TEMP/Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP/Humidity -40~+75°C, 5%~95% RH Non condensing
Net/Gross Weigh 0.55kg / 0.8kg
Installation Desktop, Wall-mounted
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty 1 Year Warranty



Why Choose ONV H1064PLS?

Compatible with all major IP camera brands

Supports high-definition video transmission

Eliminates separate power adapters

Long-distance transmission without signal drop

Affordable price for professional-grade quality

Backed by warranty and trusted brand reputation



Buy ONV H1064PLS 6 Port Smart POE Switch from SmartOfuns.

In Bangladesh you can buy authentic ONV POE Switch from SmartOfuns. We have the best collection of Dahua Security System for you to buy. Order online to get your at the best lowest price. Order now for fast shipping and top-notch customer support. This Dahua PoE Switch comes with 1 Year Official Warranty. Without Burning or Broken issue you can take warranty for 1 year at any problem.



What is the lowest price of ONV H1064PLS 6 Port POE Switch in BD?

The lowest price for ONV H1064PLS 6 Port POE Switch is 2200 Tk. You can order online from SmartOfuns.



Some FAQ:

Is ONV H1064PLS compatible with Hikvision, Dahua or Other Brands IP cameras?

Yes, this POE switch is fully compatible with all standard IEEE 802.3af/at IP cameras, including brands like Hikvision, Dahua, Imou, TP-Link, and others.

Where can I buy the ONV H1064PLS POE Switch in Bangladesh?

You can buy the ONV H1064PLS POE Switch online from trusted security camera dealers or tech shops in Bangladesh. It’s also available at SmartOFuns.com with fast delivery and warranty.
