ONV H1108PSD 10 Port Smart PoE Switch - SmartOfuns
ONV H1108PSD 10 Port Smart PoE Switch - SmartOfuns

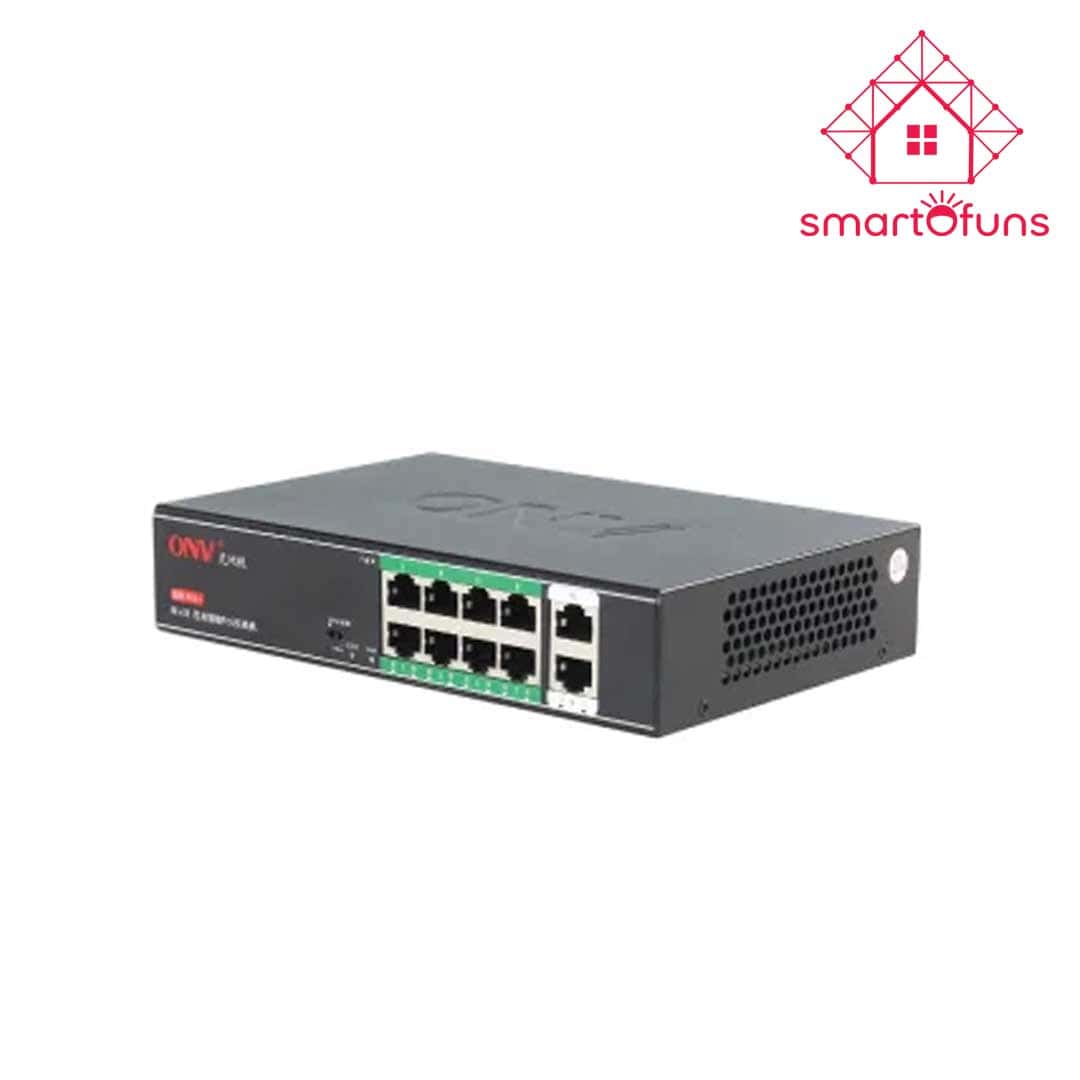

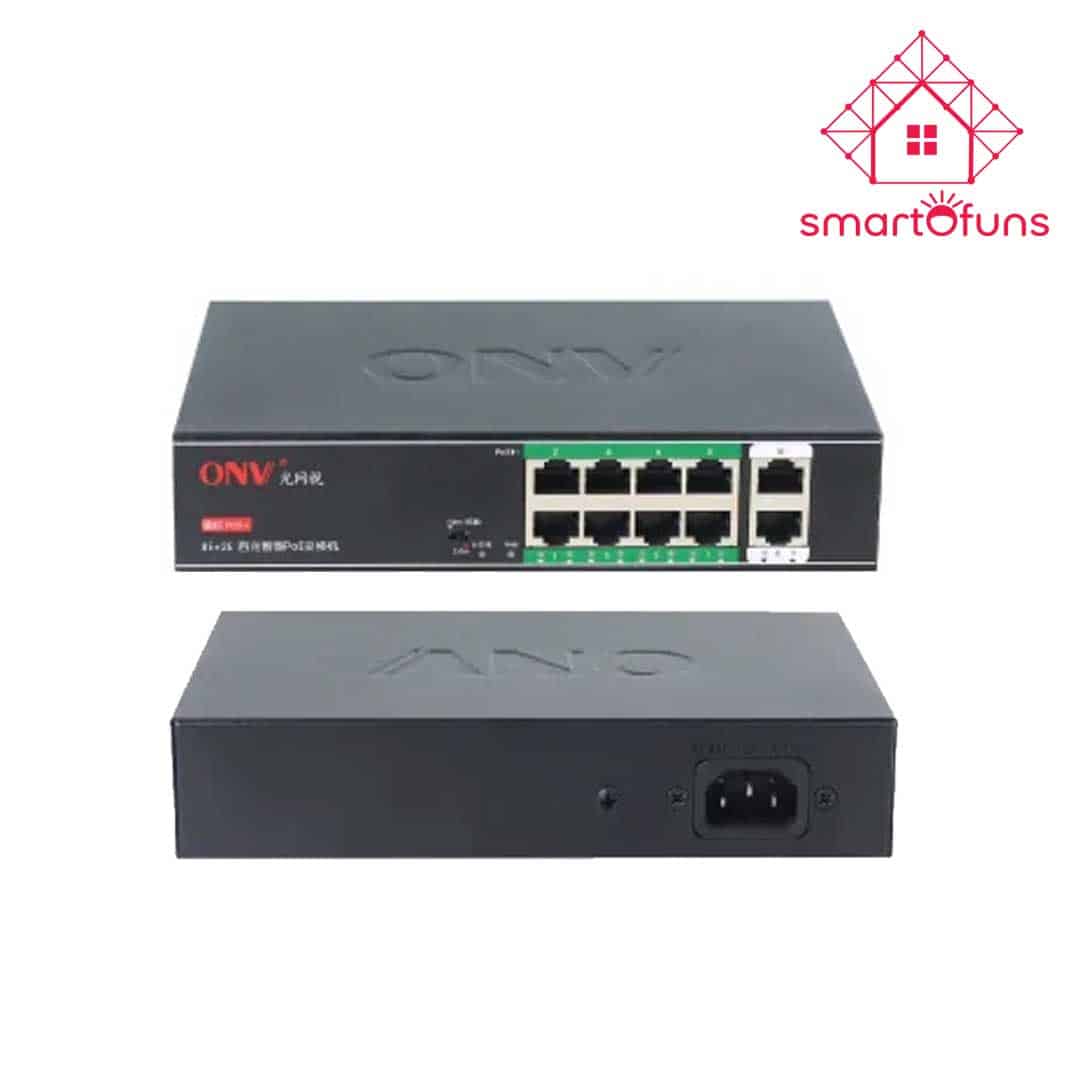

ONV H1108PSD 10 Port Smart POE Switch

Original price was: 3,100.00৳ .Current price is: 2,700.00৳ .

Device: 10 Port POE Switch
Model- ONV-H1108PSD
Ports support 10/100Mbps auto- sensing.
Transmission distance is up to 250m.
Warranty: 01 Year

Categories: , Tags: , , , , , , , , , , , , Brand:

Description

ONV H1108PSD 10 Port Smart POE Switch – Best POE Network Switch in BD

The ONV H1108PSD is a 10-port Smart POE (Power over Ethernet) switch, specially designed for CCTV camera systems, IP camera networks, and small business IT setups. It features 8 POE ports for powering and connecting IP devices, such as IP cameras, wireless access points, and VOIP phones, along with 2 uplink ports for internet or NVR connection.
This switch is ideal for anyone who wants a clean, centralized power and data solution without using separate power adapters for each device. It’s widely used in home security systems, office networks, retail shops, schools, and SMEs looking for reliable and cost-effective networking.


Main Key Features of ONV H1108PSD 10 Port Smart POE Switch:

  • 10 Port Design: 8 × 10/100Mbps POE Ports, 2 × 10/100Mbps Uplink Ports.
  • Total POE Power Budget: 96W – suitable for powering multiple POE devices like IP cameras, access points, and IP phones.
  • Smart Power Management: Automatically detects power consumption and prioritizes important devices.
  • Extended Transmission Mode: Up to 250 meters for long-distance IP camera installations.
  • Plug and Play Setup: No configuration needed. Just connect and start powering your devices.
  • IEEE802.3af/at Compliant: Works with all standard POE-enabled devices.



Technical Specifications:

Interface Characteristics
Fixed Port 8*10/100Base-TX PoE ports (Data /Power)
2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port Port 1- 6/ 1-10 can support 10/100BaseTX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Function Switch 250m: long-distance and VLAN isolation (Default: off, Use: on), After opening, port 1-4/ 1-8 support 10M/250m transmission
Chip Parameter’s
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 2Gbps
Forwarding Rate @64byte 1.488Mpps
MAC 2K
Buffer Memory 1.25M
Jumbo Frame 1536byte
LED Indicator Power: PWR (Green), Functional switch: 100m/ 250m (Green)
Network/ PoE: 1-6/ 1-10: (Green)
PoE & Power Supply
PoE Port Port 1 to 8
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, PoE+
Power Consumption Standby <5W, Full load <120W
Power Supply Built-in power supply, AC100-240V 50-60Hz, 2.2A
Physical Parameter
Dimension (L*W*H) 195*130*40mm
Operation TEMP/Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP/Humidity -40~+80°C, 5%~95% RH Non condensing
Net/Gross Weigh 0.75kg / 1.0kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty 1 Year Warranty



Why Choose ONV H1108PSD?

  • Compatible with all major IP camera brands
  • Supports high-definition video transmission
  • Eliminates separate power adapters
  • Long-distance transmission without signal drop
  • Affordable price for professional-grade quality
  • Backed by warranty and trusted brand reputation



Buy ONV H1108PSD 10 Port Smart POE Switch from SmartOfuns.

In Bangladesh you can buy authentic ONV POE Switch from SmartOfuns. We have the best collection of Dahua Security System for you to buy. Order online to get your at the best lowest price. Order now for fast shipping and top-notch customer support. This Dahua PoE Switch comes with 1 Year Official Warranty. Without Burning or Broken issue you can take warranty for 1 year at any problem.

What is the lowest price of ONV H1108PSD 10 Port Smart POE Switch in BD?
The lowest price for ONV H1108PSD 10 Port Smart POE Switch is 2700 Tk. You can order online from SmartOfuns.



Some FAQ:

Is ONV H1108PSD compatible with Hikvision, Dahua, or Imou IP cameras?

Yes, this POE switch is fully compatible with all standard IEEE 802.3af/at IP cameras, including brands like Hikvision, Dahua, Imou, TP-Link, and others.

Where can I buy the ONV H1108PSD POE Switch in Bangladesh?

You can buy the ONV H1108PSD Smart POE Switch online from trusted security camera dealers or tech shops in Bangladesh. It’s also available at SmartOFuns.com with fast delivery and warranty.
